M18FMDP-502C 18V Li-ion Fuel Cordless Magnetic Drill KIT
- Brushless POWERSTATE™ motor provides corded drilling performance with strongest magnet holding force on ¼″ steel and 40 x 18 mm holes per battery charge
- REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load
- REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life
- AUTOSTOP™ lift-off detection: Detects excess rotation and automatically cuts power to the drill for best user protection
- Self-powered permanent magnet with 8,890 N of holding force prevents accidental magnet deactivation for improved user protection and easy alignment
- 2 speed gear box for optimised drilling speed with 400 and 690 rpm´s when using annual cutters or twist drill bits
- Maximum drilling capacity of 38 mm with use of annual cutters and 13 mm straight shank twist drill bits
- Keyless 19 mm Weldon reception for fast and easy accessory change
- On board magnet lubrication tank for fixing on the machine or on the material, especially when drilling in vertical positions
- 146 mm stroke length for usage of different accessories
- Tool-free detachable handle for right or left hand usage
- On board LED light to illuminate the work surface
- Flexible battery system: works with all MILWAUKEE® M18™ batteries
| PRODUCT SPECIFICATIONS |
M18 FMDP-502C |
|
|---|---|---|
| Article Number | 4933451012, 4933451013 | |
| Battery pack capacity (Ah) | 5.0 | |
| Battery type | Li-ion | |

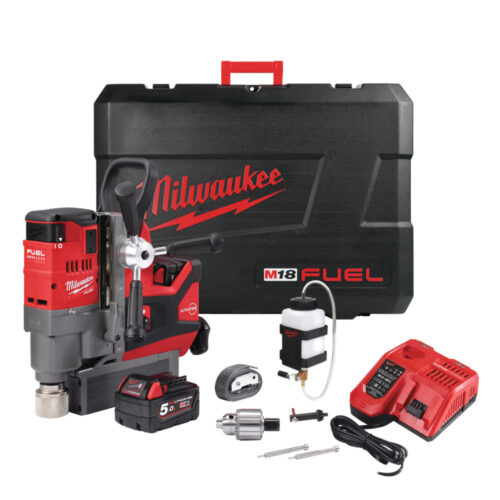

| Kit included | 2 x M18 B5 Battery packs, M12-18 FC Charger, Kitbox | |
| Magn. holding power (at drill point pressure) (N) | 8890 | |
| Max. depth broaching capacity (mm) | 50 | |
| Max. diameter broaching capacity (mm) | 38 | |
| Max. drilling solid bit (mm) | 13 | |
| No load speed (rpm) | 400 / 690 | |
| No. of batteries supplied | 2 | |
| Standard equipment | Lubrication tank with hose, magnetic lubrication tank holder, 13 mm chuck with Weldon adaptor, chuck key, ejector pin, safety strap | |
| Stroke length (mm) | 146 | |
| Supplied in | Kitbox | |
| Voltage (V) | 18 | |
| Weight with battery pack (EPTA) (kg) | 13.0 (M18 B5) |
