PRODUCT DETAILS
Brand: Knipex
Model Number: 16 95 01 SB
Dimensions: 135 x 85 x 37 mm
REACH compliant: Contains SVHC
RoHS compliant: Not applicable
Stripping capacities round cable (diameter): Ø 8 – 13 mm
Wire stripping value for conductors and strands: 0.2 — 4.0 mm²
Stripping capacities for coax cable (diameter): Ø 4.8 – 7.5 mm
Wire stripping value for data cable: CAT 5 – 7, Twisted pair (UTP/STP)
Stripping capacities: Ø 8.0 — 13.0 mm
Weight: 75 g
Country of Origin: Made in Germany
FEATURES
- For fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables

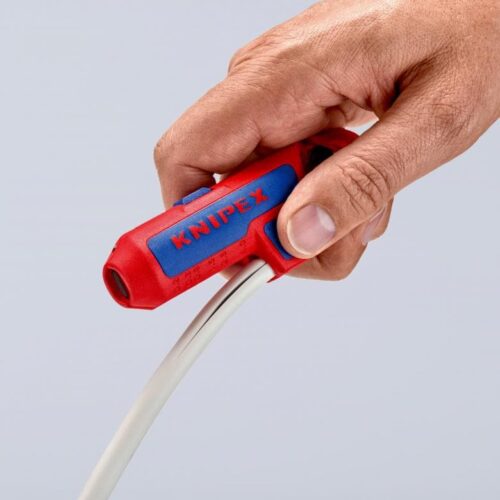

- Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath

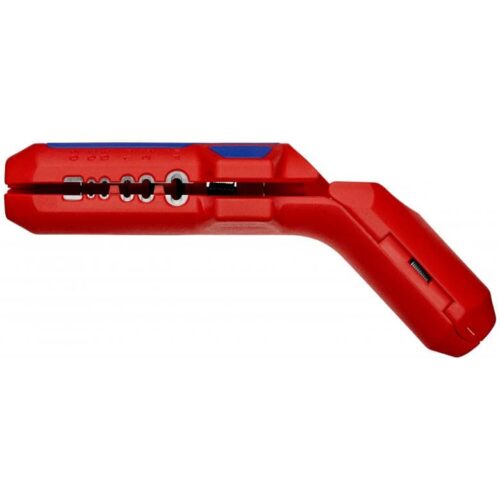

- Conical, slimmed down tool ends for better access in confined areas
- Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²

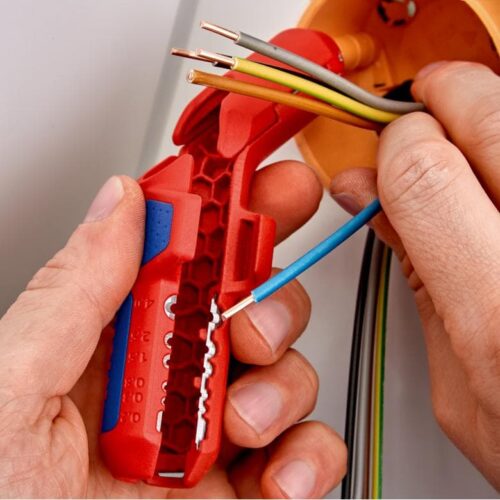

- Simplified insertion of single wires for stripping using location ridges

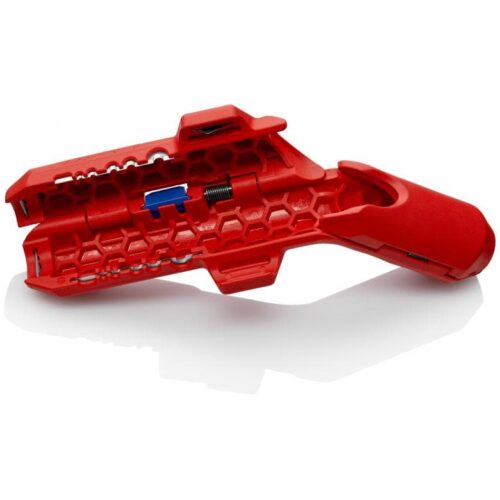

- With opening spring and locking device

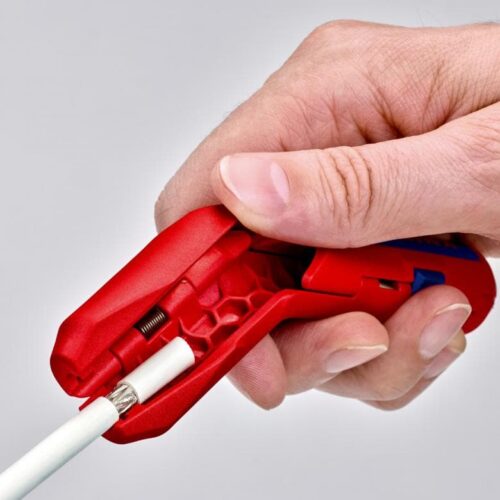

- Easy insertion of coax and data cable thanks to opening aid
- Multi-component design with a soft plastic zone for comfortable use and a secure grip
- Housing made from stable glass fibre reinforced plastic

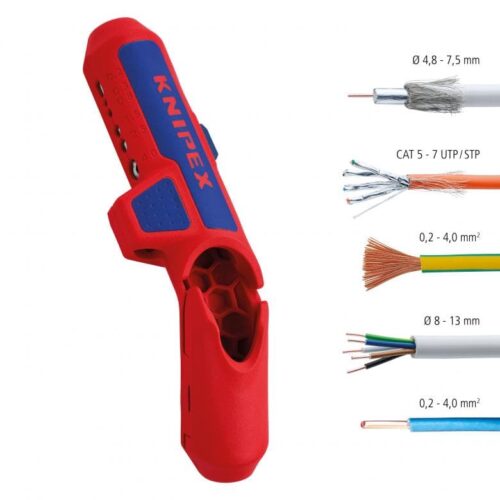

- 3-in-1 universal cable tool for all common round and damp-proof cable, LAN cable and coaxial cable
