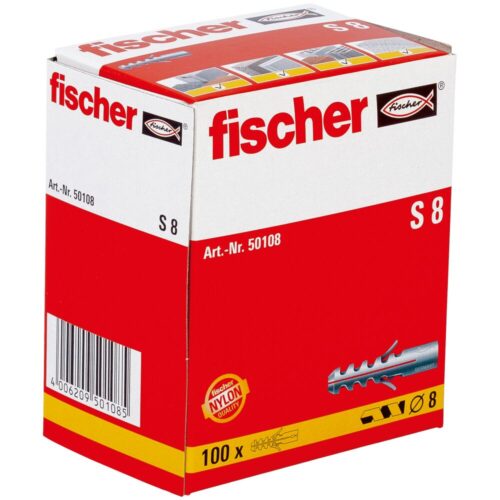

Fscher 100 pcs. Expansion Nylon Plug S 8, 8 mm – 50108

PRODUCT DETAILS

Brand: Fischer

Model Number: 50108

Quantity: 100 pcs/Box

Drill diameter: 8 mm

Anchor length: 40 mm

Min. drill hole depth: 55 mm

Wood and chipboard screws: 4.5 – 6.0 mm

APPLICATIONS

• Lighting
• Light shelves
• Mirror cabinets
• Letter boxes
• Curtain rails
• Electrical installations

BUILDING MATERIALS

• Concrete
• Solid sand-lime brick
• Natural stone with dense structure
• Solid brick made from lightweight concrete
• Solid brick

Country of Origin: Made in Germany

FEATURES

• The rimless plug is suitable for pre-positioned and push-through installation.
• Simple insertion due to the ease of pushing in the plug.
• The anti-rotation lock prevents rotation in the drill hole. This guarantees a high degree of safety during installation.

ADVANTAGES

• The rimless plug sleeve allows for the plug to be set as deep as required below the plaster to the bearing substrate to achieve the maximum load-bearing capacity.
• As the plug only expands in two directions, it is possible to direct the expansion forces so that they run parallel to the edge of the building material by turning the plug. This allows for smaller edge distances.
• The slimline plug geometry makes it easy to push the plug into the drill hole. For a fast and simple installation.
• The anti-rotation lock prevents the plug rotating in the drill hole, thus guaranteeing a high level of installation safety.

FUNCTIONALITY

• The expansion plug S is suitable for pre-positioned and push-through installation.
• When turning in the screw, the expansion plug S expands in two directions, thus providing a secure anchoring in the building material.
• The required screw length is given by the plug length + plaster and/or insulation material thickness + fixture thickness + 1 x screw diameter.
• Suitable for wood and chipboard screws.
• The edge distance must be at least one plug length.
• For installations close to the edge, turn the plug so that the expansion force acts parallel to the edge.
