Fischer FIS EB II 390 S Epoxy Injection Mortar, 390 ml – 562629

PRODUCT DETAILS

Brand: Fischer

Model Number: 562629

Content: 390 ml (660 g)

Country of Origin: Made in Germany

• Heavy steel constructions
• Consoles
• Silo installations
• Tall shelving

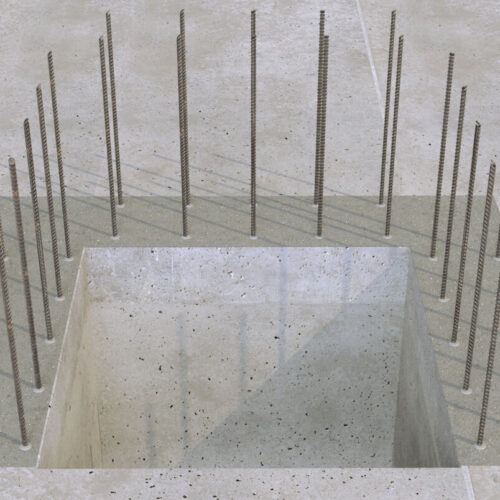

• Post-installed rebar connections

ADVANTAGES

• The injection mortar FIS EB II has ETA assessments for anchorings in cracked concrete and for post-installed rebar connections.
• FIS EB II is the reliable system for fixing heavy loads indoors and outdoors.
• Due to the variable anchoring depths, the epoxy resin mortar is very versatile.
• The long processing time of FIS EB II is particularly suitable for applications in large and deep drillholes.

BUILDING MATERIALS

Approved for anchorings in:

• Concrete C20/25 to C50/60, cracked and non-cracked

APPROVAL

• ETA-21/0469
• ETA-21/0470
• DoP No. 0295
• DoP No. 0296

FUNCTIONALITY

• The epoxy mortar FIS EB II in combination with the threaded rod FIS A and RG M is suitable for pre-positioned and push-through installation.
• Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
• The mortar is injected bubble-free from the drill hole base.
• The mortar bonds the entire surface of the threaded rod with the drill hole wall and seals off the drill hole.
• The threaded rod is set manually by slightly rotating it until it reached the drill hole base.
• During push-through installation, the annular gap between the threaded rod and the attachment is filled with FIS EB II.
