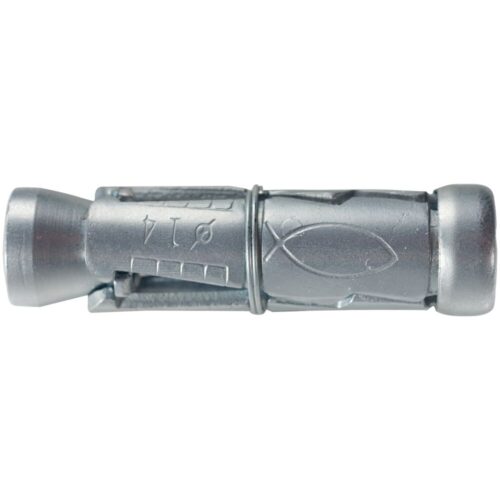

Fischer 25 Pc. FWB M8 S Internal Thread Wall Bolt Anchor – 44964

PRODUCT DETAILS

Brand: Fischer

Model Number: FWB M8 S

Quantity: 25 pc/Box

Thread Length: 8 mm

Nominal Drill: 14 mm

Total length: 50 mm

Minimum drill depth at prior insertion mode: 60 mm

Minimum anchorage depth: 40 mm

Minimum bolt penetration: 45 mm

Installation torque: 25 Nm

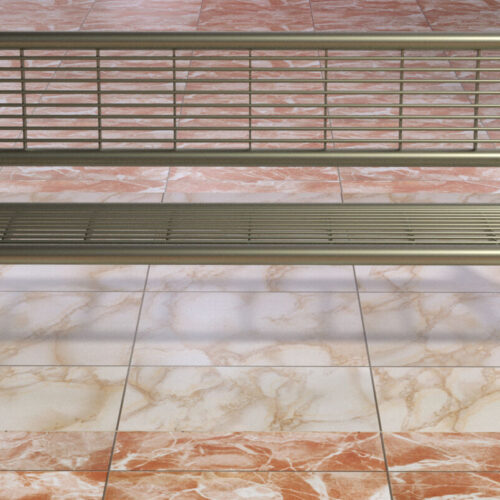

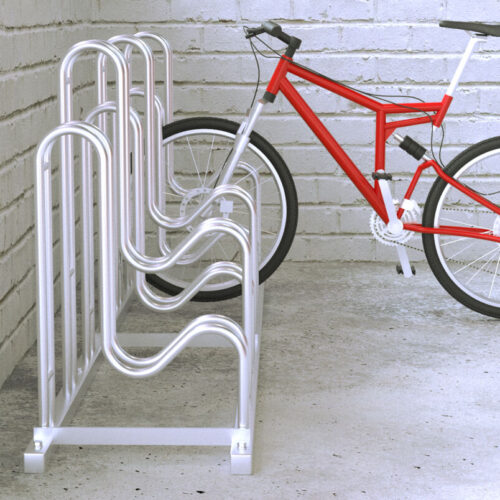

Applications: Consoles, Ladders, Staircases, Gates

Building Materials: Concrete C12/15 to C20/25, non-cracked

ADVANTAGES

• The segmented steel expansion shield is pre-assembled ready for use.
• Versatile: The internal metric thread makes this wallbolt suitable for a number of different head types.
• Surface flush which allows the fixture to be removed.
• Traditional design widely accepted by end users.

FUNCTIONALITY

• For pre-positioned and flush fixings.
• The wallbolt works by torque controlled, friction locking expansion.
• When the screw or hex. nut is tightened the cone is pulled up into the expansion shield and pushes the segments against the drill hole wall.
• For best results ensure the drill hole is dust free.
