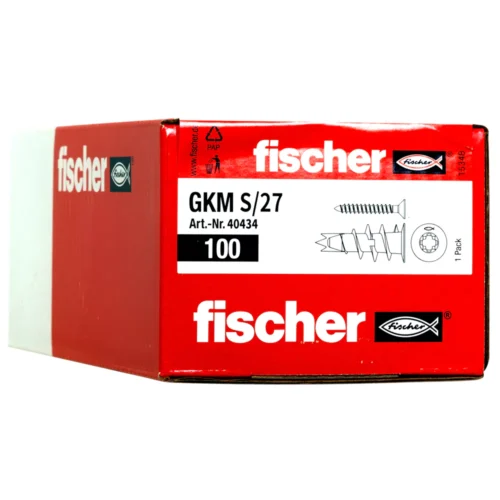

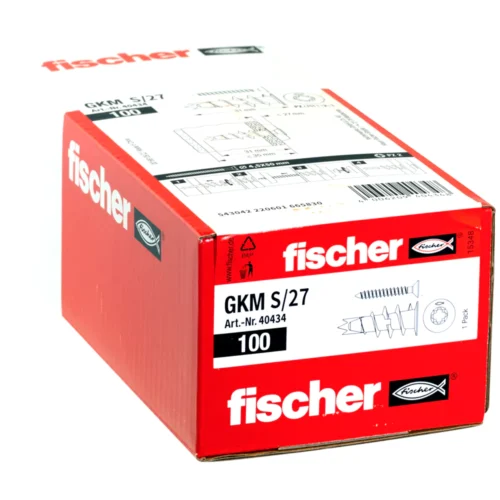

Fischer 100 Pc. GKM S/27 Plasterboard Fixing Metal with Flat Countersunk Head Screw – 40434

PRODUCT DETAILS

Brand: Fischer

Model Number: 40434

Quantity: 100 pc/Box

Applications: Pictures, Lighting, Electrical installations, Fitting accessories

Building Materials: Gypsum fibreboard, Gypsum plasterboard

Anchor length: 31 mm

Min. thickness to first supporting layer: 35 mm

Screw dimension: 4.5 x 50 mm

Drive: PZ2

FEATURES

• No drilling is required in single planked gypsum plasterboard panels. This saves time.
• High load capacity due to positive fit fixing.
• Less space required behind the board due to a short fixing length.
• Ideal for series installation.
• Complete with screw 4.5 x 50 mm.

ADVANTAGES

• Due to its material properties, the GKM can be used in gypsum plasterboard and gypsum fibreboard, and can be used with the most wide-ranging screws, hooks and eye screws. This allows for a broad range of applications.
• The sharp, self-tapping thread enables a secure, positive fit fixing. This achieves a high load-bearing capacity.
• The cross-drive recess means that a standard screwdriver or bit can be used. No special setting tool is required.
• The short fixing length means that only a small amount of space is required behind the board. As a result, the GKM can also be used in the case of unknown board thickness and cavity depth.

FUNCTIONALITY

• The GKM is suitable for pre-positioned installation.
• The self-tapping metal fixing GKM taps itself into the plasterboard with a positive fit.
• Flush installation in the board building material. Overtightening the fixing should be avoided. Therefore, the installation torque should be limited when using a battery operated screwdriver.
• Adapted for wood, self-tapping and chipboard screws of 4.0 to 5.0 mm diameter.
• Pre-drill with a Ø 8 mm drill bit when using gypsum fibreboard and double-planked gypsum plasterboard.
• Not suitable for tiled plasterboard.
