Fischer 10 Pc. FWA 16 x 140 Bolt Anchor – 45798

AED 95.00

PRODUCT DESCRIPTION

The cost-effective fixation without approval – for use in non-cracked concrete.

The fischer bolt anchor FWA is an economical solution for all applications where an approved fixation is not required. The FWA is offered in zinc-plated steel and hot-dip galvaniZed steel with an imperial thread. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.

25 in stock

Add to wishlist
EAN: 4006209457986 SKU: 45798 Categories: , Brand: GTIN: 4006209457986

PRODUCT DETAILS

Brand: Fischer

Model Number: FWA 16 x 140

Quantity: 10 pc/Box

Drill diameter: 16 mm

Min. drill hole depth for through fixings: 140 mm

Anchor length: 140 mm

Width across nut: 24 mm

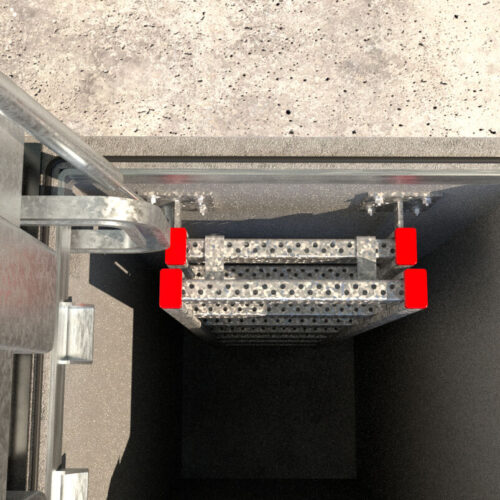

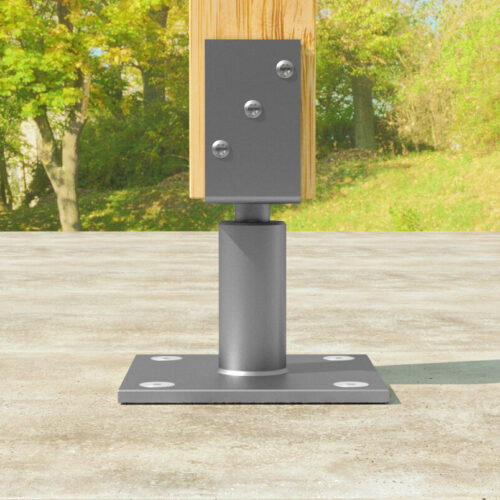

Applications: Steel constructions, Guard rails, Consoles, Ladders, Cable trays, Machines, Staircases, Gates, Façades

Building materials: Concrete C20/25, non-cracked

ADVANTAGES

  • The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimizes the amount of time needed for installation whilst increasing flexibility.
  • Available with metric and imperial threads

FUNCTIONALITY

  • The FWA is suitable for pre-positioned and push-through installation.
  • Prior to installation, place the hex nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hex nut).

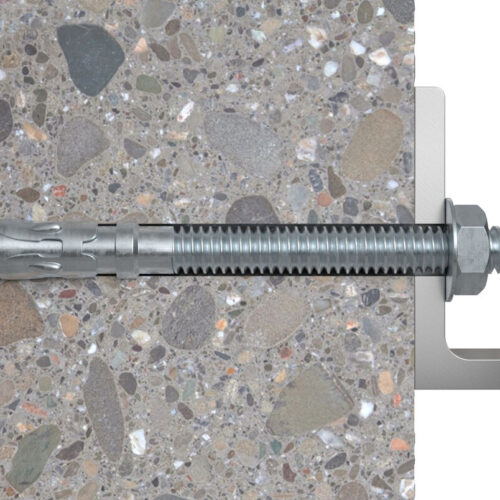

  • When the torque is applied, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
