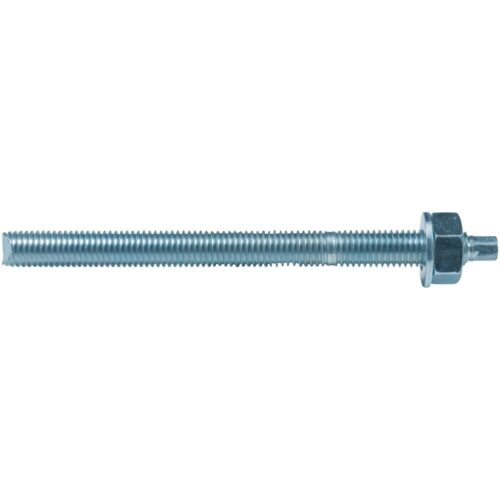

PRODUCT DETAILS
Brand: Fischer
Model Number: FTR M12 x 160
Quantity: 10 pc/Box
Thread Length: 12 mm
Suitable Drill Bit Diameter: 14 mm
Suitable Minimum Depth: 110 mm
Fixture Maximum Thickness: 30 mm
Key Size: 19 mm
APPLICATIONS
- Anchorings with resin capsules without approval
- Anchorings with injection mortars without approval
Building Materials: Concrete, Natural stone with dense structure
ADVANTAGES
- The threaded rod FTR is the cost-effective solution for applications with resin capsules where no approval is required.
FUNCTIONALITY
- Due to its oblique edge, the threaded rod FTR is particularly suitable for use in conjunction with resin capsules.
- The threaded rod FTR is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.
- During setting, the oblique edge of the FTR destroys the capsule and mixes and activates the mortar.
- Use with injection mortar is also possible. Here, the threaded rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.
