Fischer Nylon Toggle DuoTec 10 RH K NV Round Hook (Pack of 2) – 537264

AED 21.00

PRODUCT DESCRIPTION

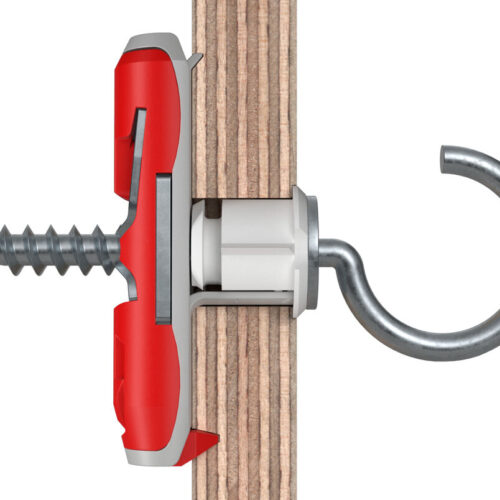

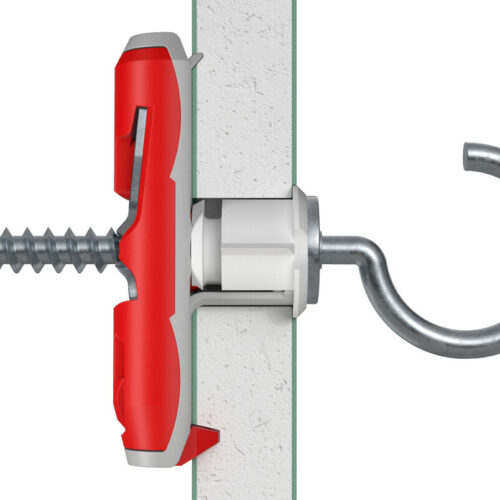

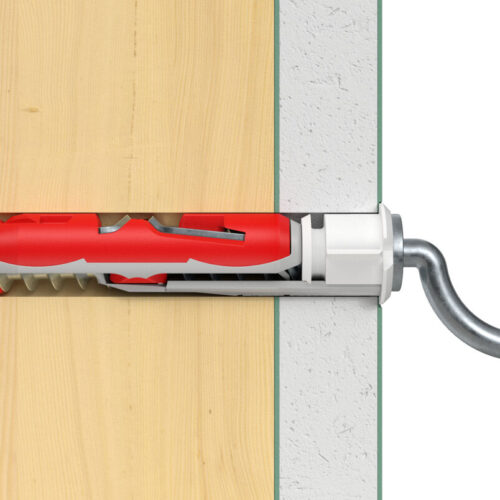

The nylon toggle fischer DuoTec for high tensile and transverse loads through 2 components. Easy installation with small drill hole diameters of 10 mm and short toggle element, even in narrow and insulated cavities. Easy pre-installation; the plug does not fall into the drill hole, even without a screw. No cutting, and thus no weakening of the gypsum plasterboard. The toggle element automatically folds behind the panel and gives it its strength. As a result of the flexible stainless steel screw seat, the gravity toggle can be used with wood and chipboard screws or metric hooks and threaded rods with lock nuts. If it hits something in the drill hole in solid building materials, it functions like an Expansion plug. The round hook provided is optimally matched to the Gravity toggle fischer DuoTec. This guarantees the perfect hold.

10 in stock

Add to wishlist
EAN: 4048962254136 SKU: 537264 Categories: , Brand: GTIN: 4048962254136

PRODUCT DETAILS

Brand: Fischer

Model Number: 537264

Pack Quantity: 2 pairs

Drill diameter: 10 mm

Min. panel thickness: 12.5 mm

Max. panel thickness: 55 mm

Min. cavity depth: 40 mm

Screw diameter: 5.0 mm

Screw length: 84 mm

Min. drill hole depth: 66 mm

Anchor length: 50 mm

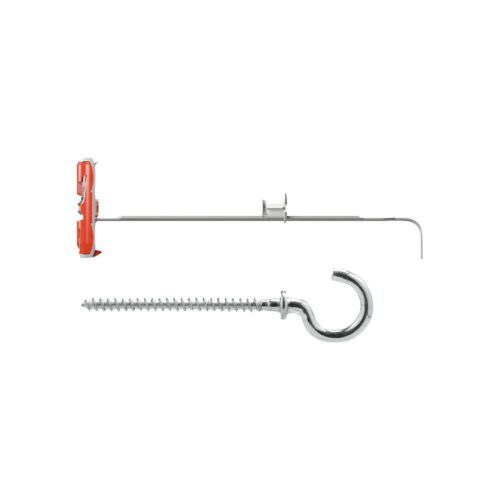

Contents: 2 x DuoTec 10, 2 x round hook 5.0 x 84

Country of Origin: Made in Czech republic

FEATURES

  • Combination of two material components for more performance.
  • Flush sleeve strengthens the drill hole and allows considerably higher transverse loads.
  • Curved handle allows obstacles to be identified before installation.
  • With corresponding round hook.

ADVANTAGES

The installation-friendly solution for high loads in panel building materials.
  • Flexible screw mount allows for the use of screws and hooks with different thread shapes.
  • Glass fibre-reinforced plastics and a metal skeleton insert (fischer DuoTec 12) allow the toggle to handle heavy tensile and transverse loads in all panel building materials.
  • Soft grey nylon contact surface distributes the load over the panel surface, thereby minimising weakening of the supporting building material.
  • Standard drill hole diameters and short tilting element for easy installation in narrow cavities, including cavities with insulation.
  • White flush sleeve with snap function allows the plug to be pre-installed quickly and securely in the drill hole.
  • With scale on the grip strap (fischer DuoTec 12) for determining the required screw length (scale value + 20 mm).

APPLICATIONS

  • Kitchen hanging cabinets
  • Living room cabinets
  • Shelves
  • Wardrobes
  • Handrails
  • Pictures
  • Mirrors
  • Lamps
  • Heavy hanging baskets
